To update a VMS firmware remotely; start by logging into DS-Live.

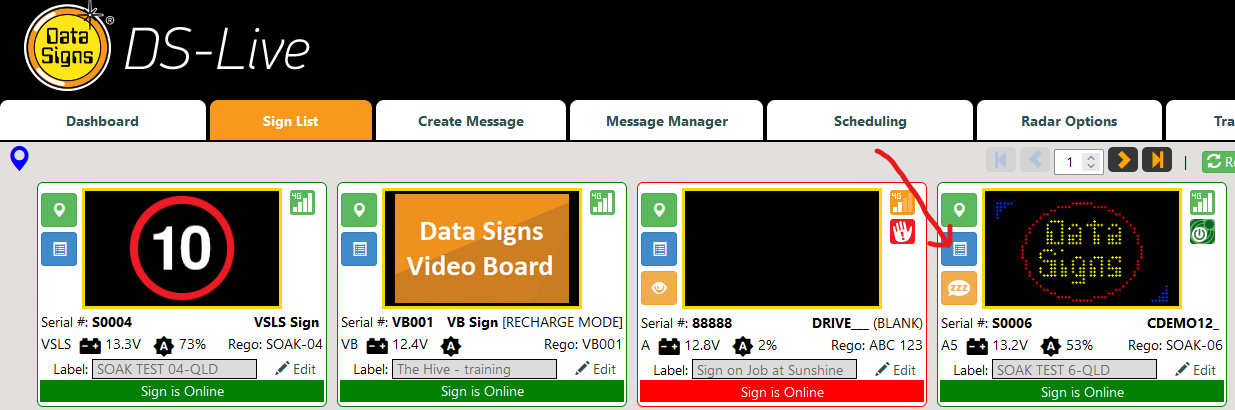

Click on the "Sign List" tab and then click the blue "More Info" button of a VMS.

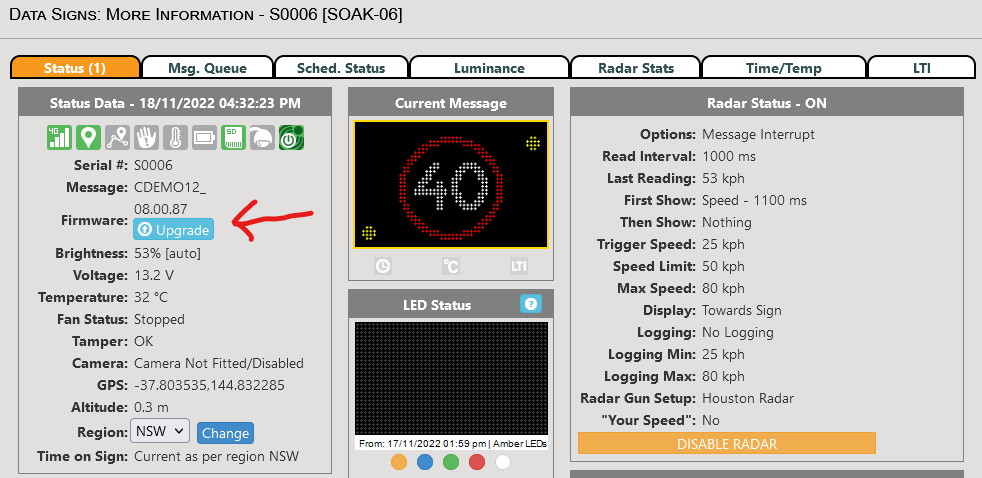

Click on the "Firmware Upgrade" button if visible

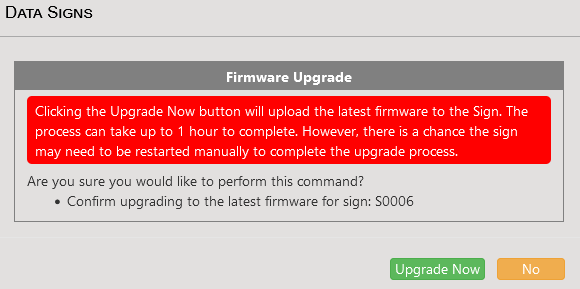

Read the details highlighted in red and click on the "Upgrade Now" button to start the upgrade.





To upgrade the firmware manually.


  • Log into DS-Live as an administrator and go the Admin > Manage Signs section
  • From the "Latest Firmware" section, select "RM-32D (VMS)" and select the latest firmware from the drop list.
  • Click the Download Firmware button to start downloading the firmware file.
  • Remove the SD card from the controller and copy the downloaded file to the FWARE folder.
  • Insert that SD card in the controller and power up the sign
  • The firmware update will start immediately.
